Winding cable measuring and small slitter wire spool rewinding and tying bundling machine

1.0 Sets
MOQ
Winding cable measuring and small slitter wire spool rewinding and tying bundling machine
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number: HB-M02
Usage: Winding
Available Wire Diameter: 1-8mm
Cutting Length: 1-9999mm
Max Coil Weight: 2kgs
Winding Diameter: 120-190mm
Winding Speed: 1-13 cycle/s
Bundling Diameter: 18-45mm
Power Supply: 110/220VAC,50/60Hz
Power: 200W
Dimensions: 83*30*55cm
Weight: 80kg
Основная информация
Model Number: HB-M02
Оплата и доставка Условия
Supply Ability: 100 Set/Sets per Month
Характер продукции

WIREPRO Automation Focus on Machines & Solutions for Wire Processing & Harness Assembly, welcome you to check more equipment on our website.

If you need any support, welcome contact us anytime ^_^

Product Description

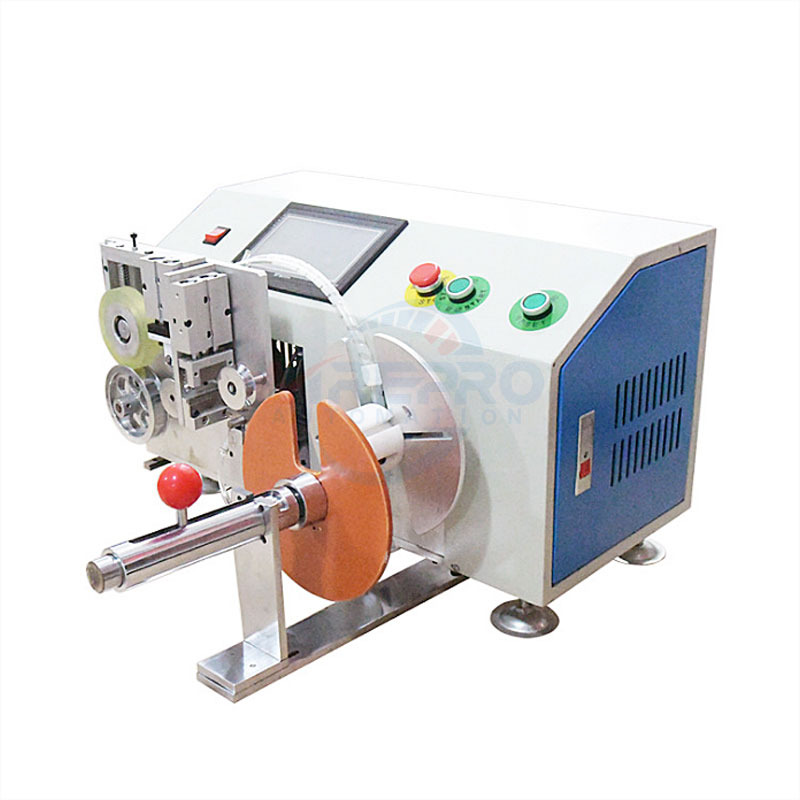

HB-M02 With meter counting fixed length automatic wire spool bobbin rewinding coiling machine

Model HB-M01 HB-M02
Type Desk Type with tying function Desk Type no tying function
Available Wire Size Φ1-8mm ( can custom)
Max Coil Weight about 1.5 kg
Winding Diameter Standard 280mm; Max 320mm
Winding Speed 1-13 cycle/s
Bundling Diameter Φ18-45mm/
Power Supply 110/220VAC,50/60Hz
Power 400W
Dimensions 83*30*55cm 75*30*55cm
Weight 80kg 73kg

The HB-M01 and HB-M02 can full-automatic metering, cutting and winding wire, supporting wire roll and wire reel winding. The HB-M01 has wire bundling parts, the HB-M02 not, better for small wire spool rewinding.
Machine process the wire according to the parameters set on the LCD touch screen, work fast and stable. The cutting length and wire binding cycle are both easy to adjust, the previous setting parameters will be saved automatically. All of its wearing parts are designed very durable and artful, it released manual work and improved working speed as well as processing stability. It is suitable for round wire, flat cable, ribbon wire, double wire etc.

Features:
1. Full-featured with metering, windings and tying functions
2. High accuracy metering the wire length
3. The finished wire coil is very neat
4. The cutting length and wire binding cycle are both easy to adjust

Application

More machine pictures

Related Products

Wire winding machine

HB-W25

Wire tying machine

HB-T40

wire winding and bundling machine

HB-D40

Desktype wire metering cutting winding bundling machine HB-M01

Desktype wire metering cutting winding machine

HB-M02

Floor standing wire metering cutting winding machine HB-M01

Floor standing wire metering cutting winding bundling machine HB-M02

Packaging & Shipping

Samll size machines: Standard carton
Medium size machines: Thickened cartons and wooden pallets
Big size machine: Plywood wooden cases

Company Information

FAQ

1. What are the optional accessories and wearing parts?
Optional accessories: Wire spool pre feeder, Wire collector, wire coiler or wire stacker.
Wearing parts: Generally blade and belt.
For More info, please contact WIREPRO.
2. Operation panel and user manual language?
English and Chinese are optional.

3. How long is the lead time?

Ready time: Generally the standard machine will be ready in 2-3 workdays, the customized machine please check with us again when placing an order.

Packaging: The machine is packed in a carton or wooden box according to the size. Sufficient cushioning material will protect the machine intact during long-distance transportation.

Transportation: Support shipping via air, sea, and railway many transportation modes.

4. How do we install and operate the machine?
Machines, accessories, and manuals will be packed and delivered together, we provide operation and maintenance instructions and parts catalog.

Small Machine: The user can install and adjust the machine according to the Manual and video of how to install and set the machine. If you have any questions, please contact our technical support (Email: support at wireproauto.com) to provide online, video, and other support. If customers really need we can make exceptions on-site service (expense will be borne by customers).

Large full automatic machine: We will arrange engineers on-site installation, testing, and adjustment of equipment. Please check with us about the details.

We also welcome you to come to our factory for more training.
5. What after-sales service is provided?
WIREPRO has an experienced technical support team to be responsible for troubleshooting for customers via phone calls, emails, videos, etc. If you need spare parts, DHL generally could deliver them in about 3-5 days.
